5.7kw modular water chiller

5.7kw modular water chiller

  • $4,875.00
  • Save $3,880


MFC-3C water - glycol chiller

5.7kW cooling at -5°C, For Breweries, Wineries, Beverage and Milk cooling.

Industrial Refrigeration Marlborough, Spare parts available in New Zealand.

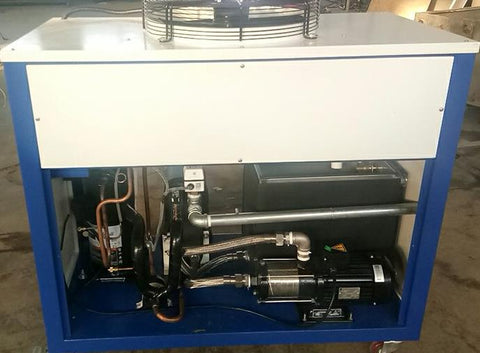

Air cooled glycol chiller MFC-3CL
Cooling capacity: 5.7kw at -5 deg C leaving water temperature
Water circulation Pump:0.37kW
Water tank built in
Refrigerant:R407c
Power supply:3PH-415V-50Hz
Power input 3.45kW
Electronic controls

Compressor over temperature,over current,high and low
pressure,Phase sequence,phase-missing



Scroll Type Air Cooled Water Chiller, 1 to 60 horse power
Model MFC-1C MFC-3C MFC-5C MFC-6C MFC-8C MFC-10C MFC-12C MFC-15C MFC-20C MFC-25C MFC-30C MFC-40C MFC-50C MFC-60C
Cooling capacity  0℃ kw 2.1 6.8 10.5 12.2 16.2 22.8 24.8 33.4 44.2 50.5 66.9 87.7 110.6 142.6
 -5℃ kw 1.8 5.7 8.9 10.3 13.8 19.3 21 28.4 37.6 43 56.8 74.5 94 121.2
Input power kw 1.32 3.45 5.45 6.31 8.22 10.54 12.33 15.84 20.51 23.52 31.81 40.18 47.92 59.86
Power supply 3PH-380V-50Hz(1PH-220V-50Hz)
Refrigerant Type R22/R407C
Control type Thermostatic expansion valve( Capillary)
Compressor Type Hermetic scroll type
Power kw 0.85 2.84 4.36 5.2 3.5*2 4.4*2 5.2*2 4.4*3 8.7*2 10.2*2 8.7*3 8.7*4 10.2*4 10.2*5
Evaporator Type SS Tank with Plate HX, Shell and tube or coil option.
Flow rate m³/h 0.40 1.29 1.99 2.31 3.07 4.32 4.70 6.33 8.37 9.57 12.68 16.62 20.96 27.02
m³/h 1.17 1.83 2.12 2.84 3.97 4.32 5.84 7.73 8.85 11.68 15.33 19.34 24.93
Tank volume L 20 50 70 70 120 200 200 270 350 350 450 580 580 750
Dia. Of inlet/outlet mm DN20 DN20 DN20 DN32 DN32 DN32 DN32 DN40 DN40 DN40 DN65 DN65 DN80 DN80
Condenser Type Finned copper tube with low noise axial fan
Fan power kw 0.095 0.19 0.52 0.52 0.24*2 0.46*2 0.46*2 0.55*2 0.78*2 0.78*2 1.32*2 0.78*4 0.78*4 1.6*3
Water pump Type Centrigual water pump
Power kw 0.37 0.37 0.75 0.75 0.75 0.75 0.75 1.5 1.5 1.5 2.2 2.2 4 4
Head m 20 20 20 20 20 20 20 20 20 20 20 20 20 20
Protection system Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Machine Size L mm 500 1200 1200 1200 1400 1560 1560 1800 2100 2100 2200 2500 2000 2900
W mm 500 600 600 600 800 850 850 1000 1000 1000 1160 1460 2000 2000
H mm 720 1100 1100 1100 1400 1500 1500 1600 1700 1700 1900 2000 1750 1900
N.G kg 70 150 200 230 310 450 500 750 850 900 1150 1350 1600 1650
